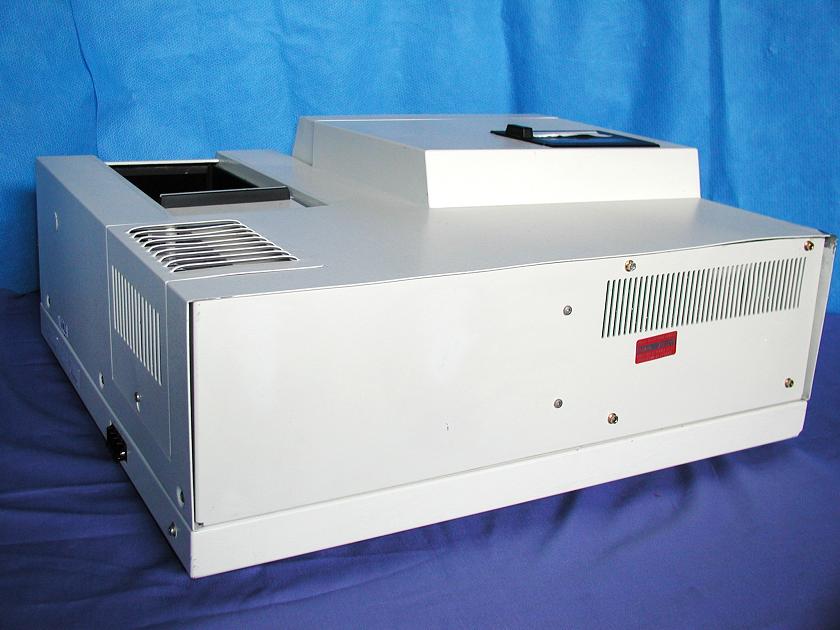

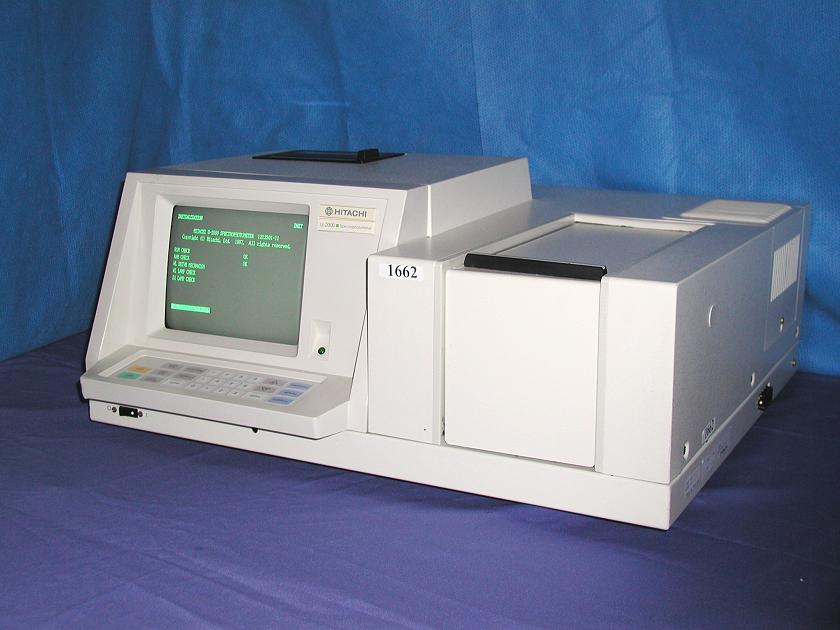

Hitachi U-2000 Double-Beam UV/VIS Spectrophotometer

Item Number:

1662

Manufacturer:

Model:

U-2000

Condition:

Used

Power Supply:

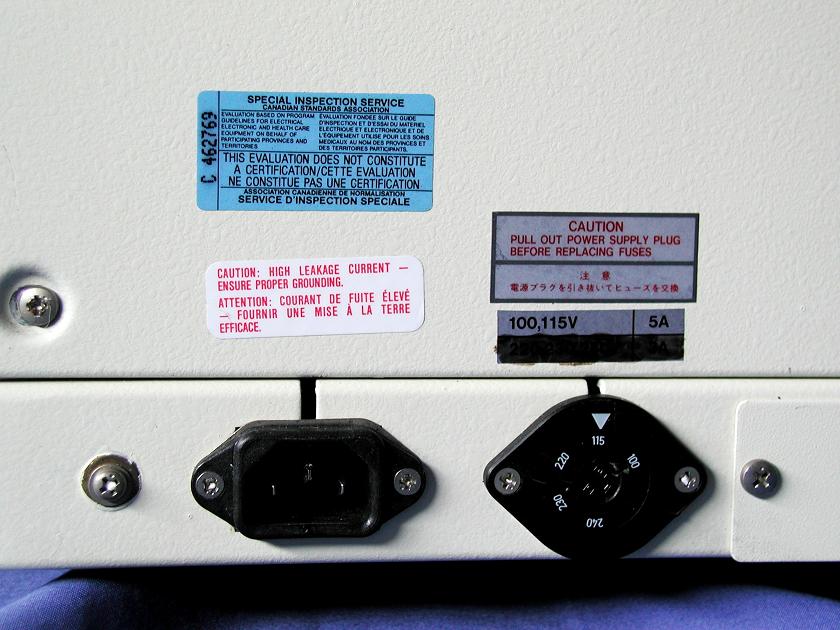

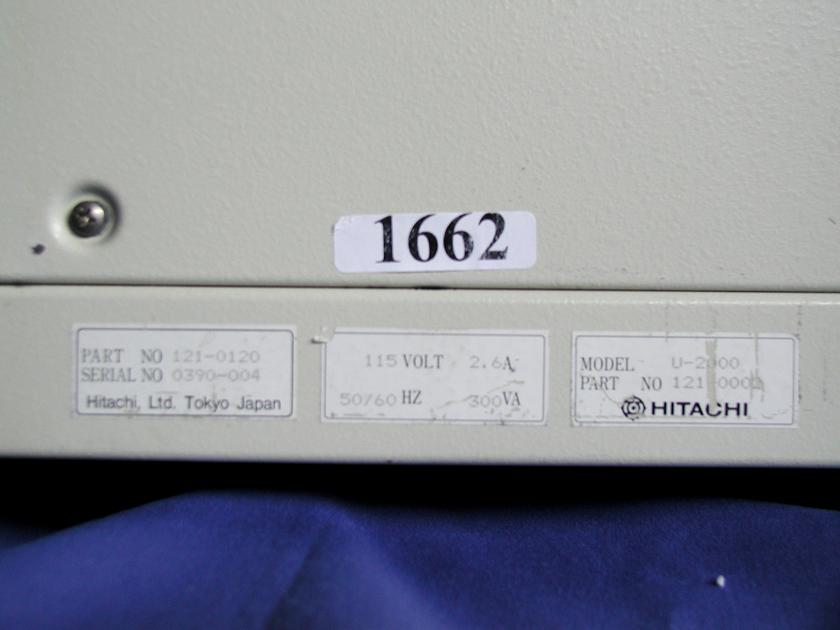

115 V, 2.6 A, 300 VA, 50, 60 Hz

Specifications:

Hitachi U-2000 Spectrophotometer equipped with high resolution concave diffraction grating Seya-Namioka mount. This spectrophotometer has a number of features that make it ideally suited for quantitative spectral analysis in both the ultraviolet and visible regions of the spectrum.

• Wavelength range: 190 to 1100 nm
• Spectral Band pass: 2nm
• Wavelength: +/-0.4 nm accuracy
• Wavelength setting: +/-0.2 nm reproducibility
• Photometric mode: ABS, CONC, %T, Single Beam
• Photometric range: ABS = -1 to 3 Abs and %T= 0 to 300 %T
• Wavelength scan speed: Fast, Medium, Slow 2, 10, 100, 200, 400, 800, 1200, 2400 nm/min. Light Source: Deuterium lamp, tungsten iodide lamp
• Light Source switchover: Automatic switchover; interlocked with wavelength

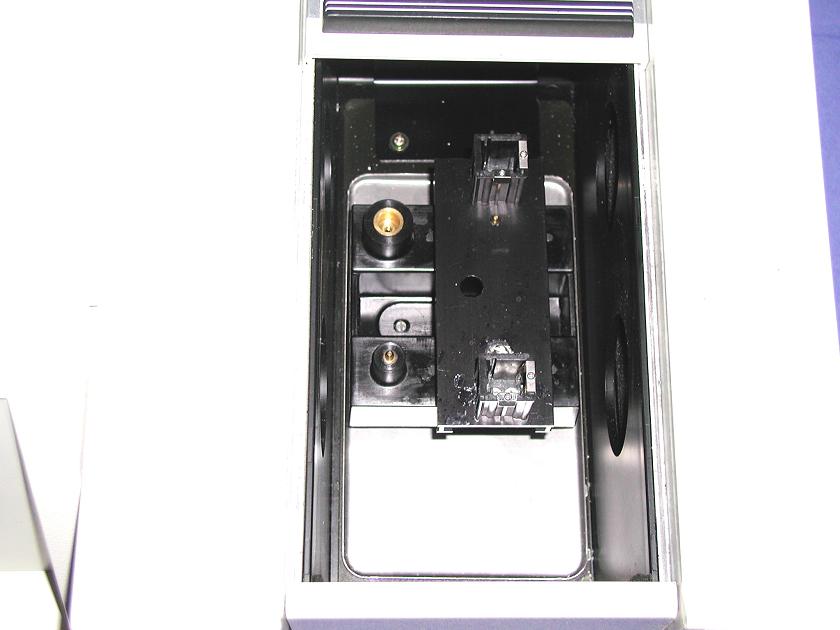

• Beam spacing = 100 mm, Sample compartment: 120 (W) x 300 (D) x 140 (H) mm
• Detector: Silicon Photodiode

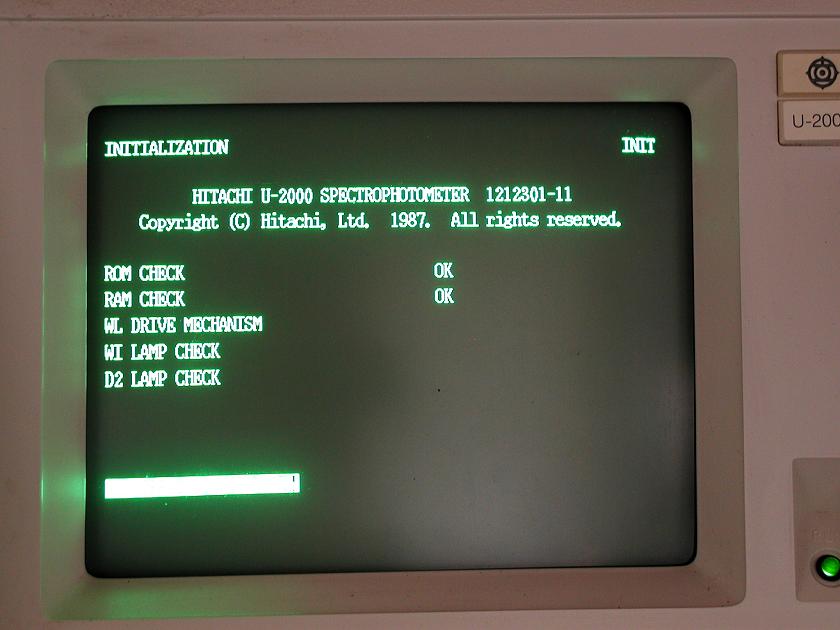

• Display: 9-inch monochrome display
• Printer: Heat sensitive graphic printer (line head 320 dots)
• Printer paper width: 110 mm

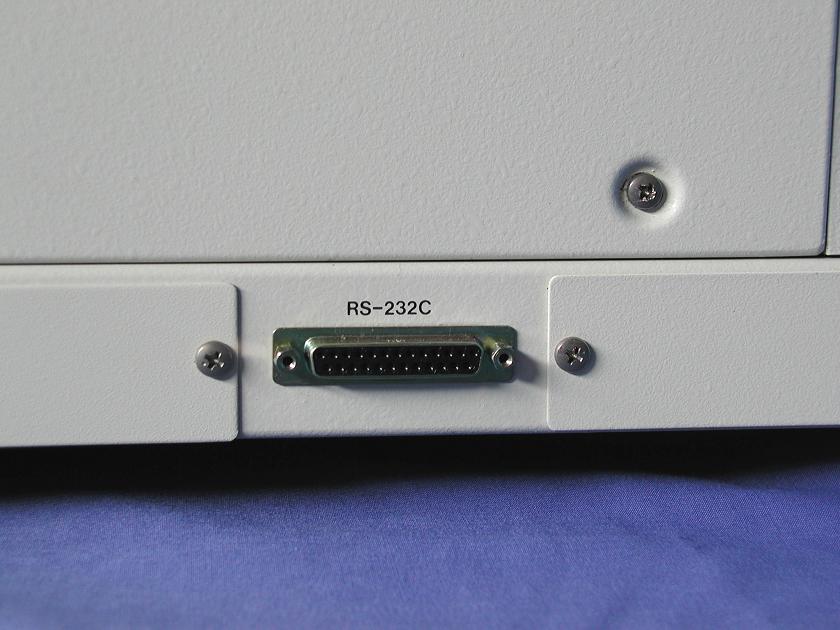

• Commmunication: RS-232C, bidirectional communication
