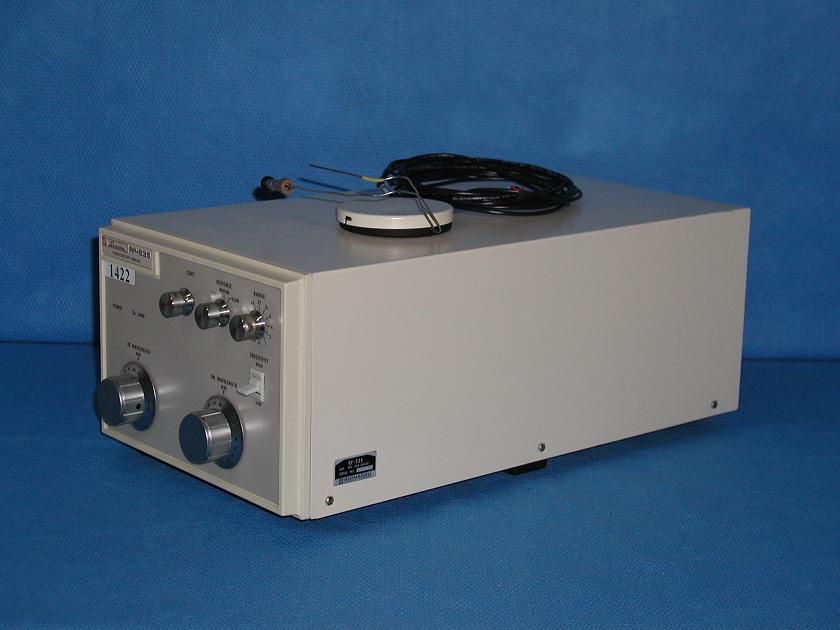

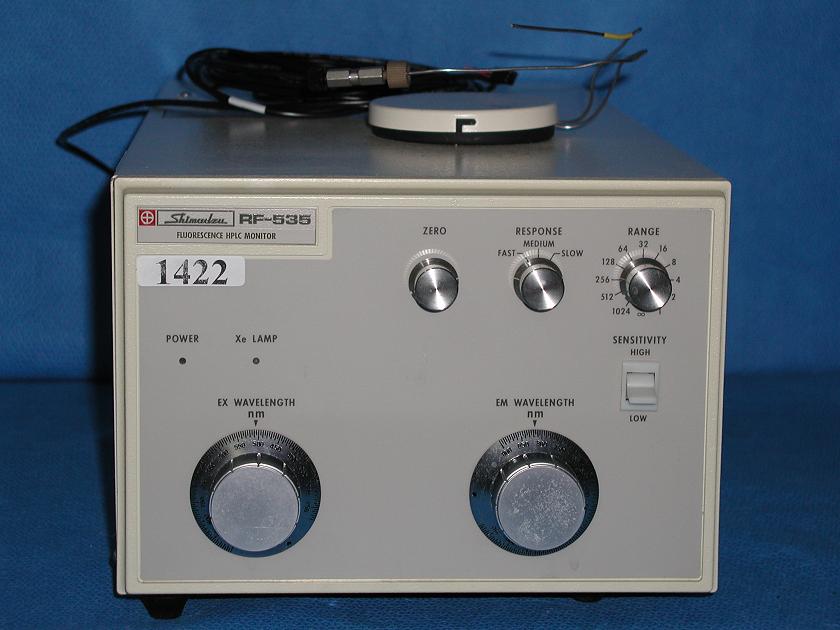

Shimadzu RF - 535 Fluorescence HPLC Monitor

Item Number:

1422

Manufacturer:

Model:

RF - 535

Condition:

Used

Power Supply:

100 - 117 V, 5 A, 60 Hz

Specifications:

Type of monochromators: concave diffraction grating excitation and emission mono-chromators
Photometric principle: Monochromatic light monitoring wich dynode feedback control
Light source: 150W xenon lamp (Constant-current type power supply)
Excitation monochromator: Holographic concave diffraction grating monochromator F/2.4
Wavelength scale range: 220 - 90Onm and zeroth order
Measuring wavelength range: 220 - 650nm and zeroth order
Wavelength accuracy: +/-10nm
Band width: 13nm
Emission monochromator: Holographic concave diffraction grating monochromator F/2.4
Wavelength scale range: 220 - 90Onm and zeroth order
Measuring wavelength range: 220 - 650nm and zeroth order
Wavelength accuracy: +/-10nm
Band width: 13nm
Sensitivity range: 12 steps of sensitivity factors X1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024 and infinity.
The Range infinity represents OV output.(The Range 1024 represents 1/1024 of the output of the Range 1.)
Gain: HIGH/LOW level selectable. (The HIGH level provides sensitivity of approximately 100 times that of the LOW level.)
Cell: 12ul square quartz flow cell (Maximum internal pressure: 5kg/cm2)
Detector: Photomultiplier (for both signal and monitor sides)
Time constant: Three stages (F = 0.3, M = 1.5 and S = 5 sec) selectable

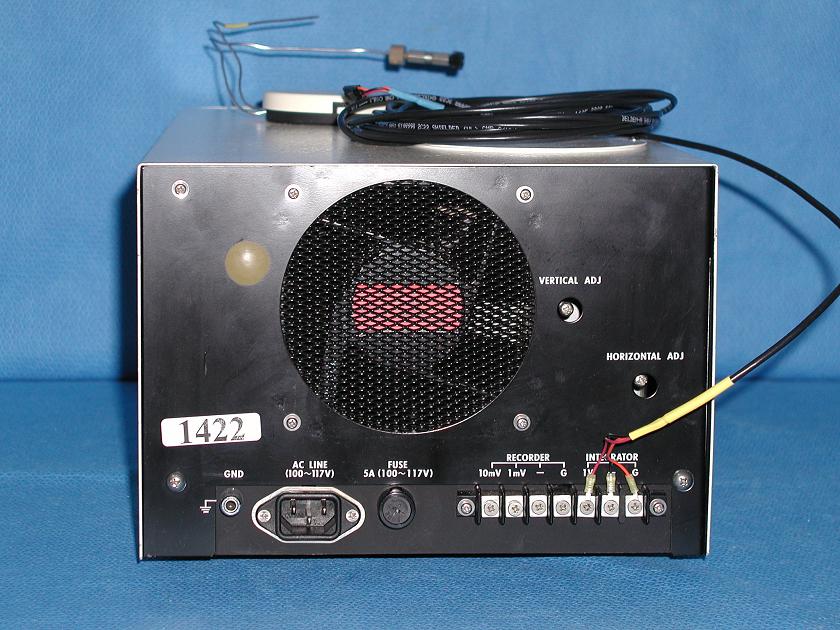

Output terminals: Recorder 1mV, 10mV F.S.
Integrator: 1V F.S
