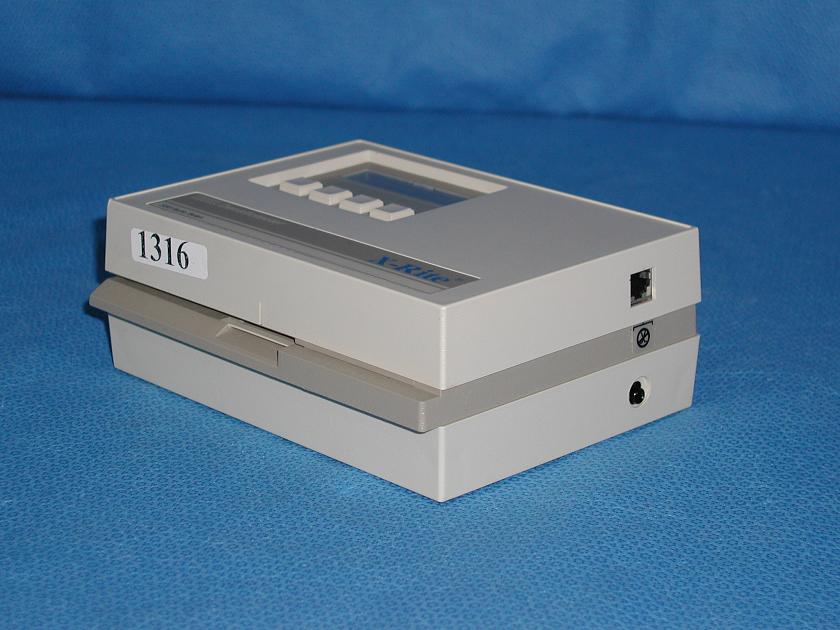

X - Rite Process Control Densitometer

Item Number:

1316

Manufacturer:

Model:

380 Auto Scan

Condition:

Used

Power Supply:

12AC V, 0.7 A

Specifications:

The X-Rite 380 Densitometer is an automated transmission instrument designed for the quality control of 21 steps, sensitometric film strips exposed by an X-Rite Sensitometer. Film strips are automatically measured using a motorized control mechanism. Last strip data is sorted, and available for viewing or transmitting via the RS232 port.The densitometer is operated using 4 keys and a interactive 16 character/2-line Liquid Crystal Display. There are 4 channels (for different processors to be monitored). Each strip measured includes 21 steps of density and one manually entered temperature.The densitometer measures and stores the absolute density of the steps.The densitometer comes preset with common process control equations for interpreting the data.This unit has an Editor that allows you to set the Hospital Name, Channel Name, and Equation format to best suit your individual requirements. The densitometer can output a sensitometric curve report to a dot matrix serial printer.

Basic equations types are:

• Density at step number.
• Density at exposure level.
• Exposure level at density.
• Contrast and Gradient.
