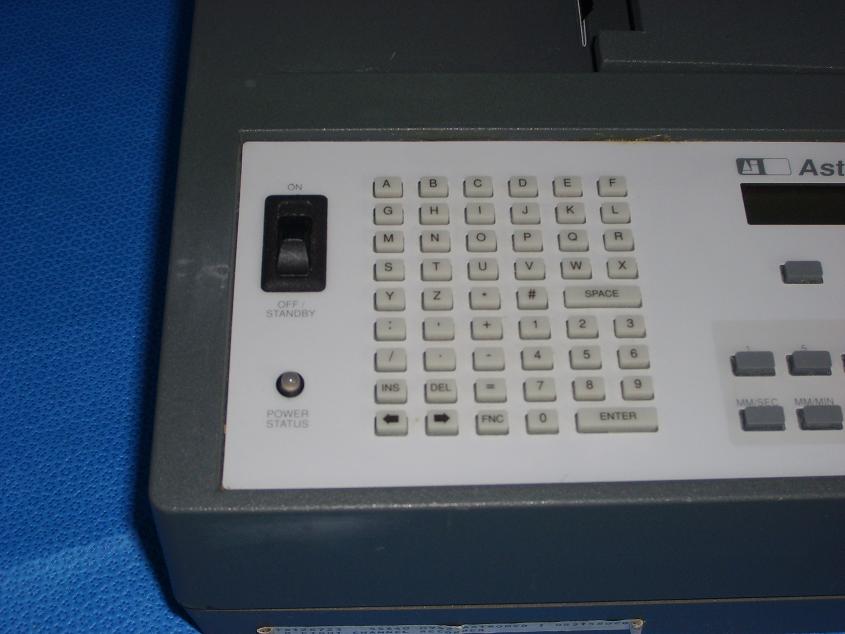

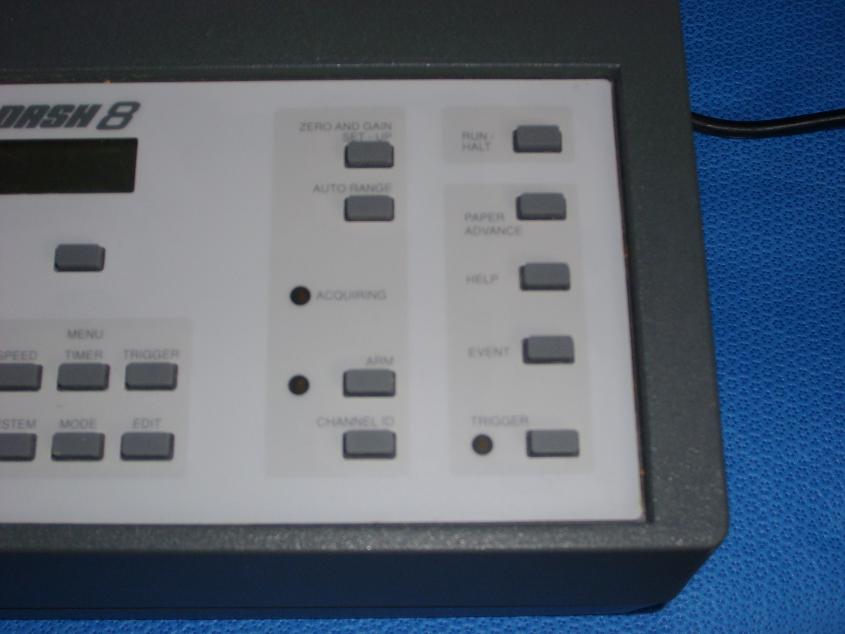

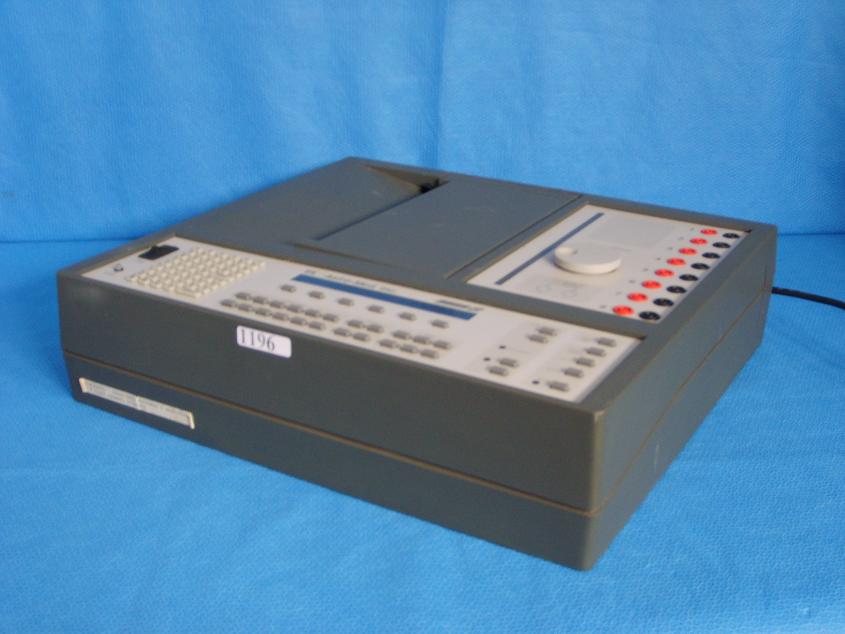

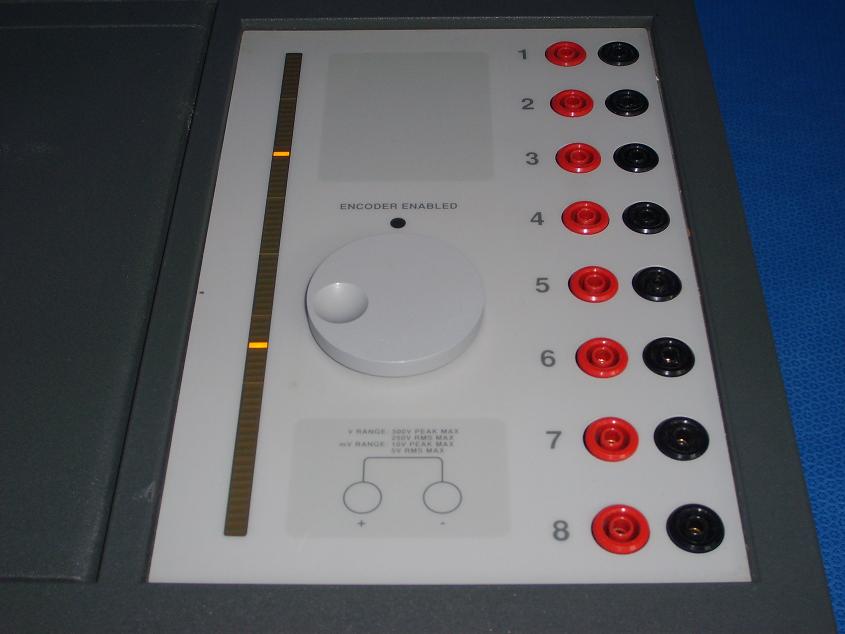

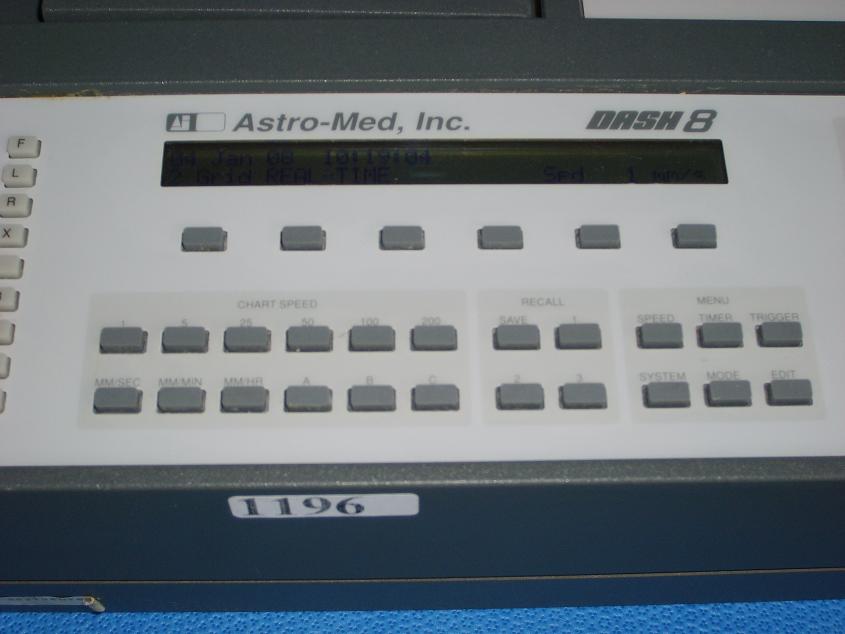

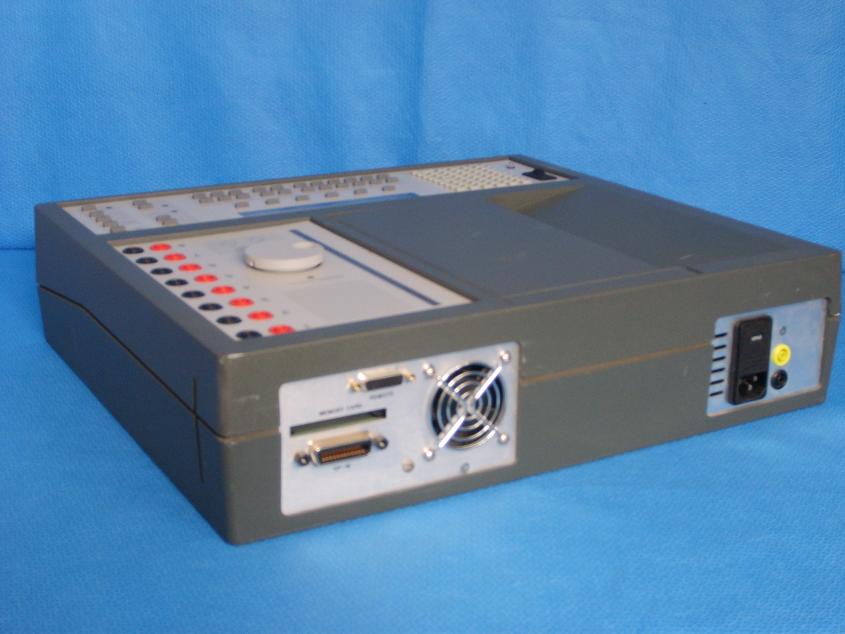

Astro-Med DASH 8 Chart Recorder
Item Number:
1196
Manufacturer:
Model:
DASH 8
Condition:
Used
Specifications:
- 8 Channel Thermal Chart Recorder
- DC to 25 kHz bandwidth
- 200 dot/inch printed resolution
- 200 mm/second chart speed
- Paper Dimensions: 8.5" wide by 150' long; 216mm x 46m
- Number of Channels: 8 channels, maximum. User selectable 6-, 4-, 2-, and 1-channel modes
- Chart Formats: standard: 8-, 6-, 4-, 2-, 1-channel & User Grid.
- Measurement Range: 50mV full scale to 500V peak full scale
- Maximum Input: 500V peak or DC; 250V rms mode
- Sample Rate: 250 kHz maximum per channel
- Measurement Mode: true rms or peak-to-peak
- Weight: 28 lbs with battery pack
